Thursday, January 15, 2009

#593 ... Tracking on Up.

The steep access road to the work site on the hillside above Ngaio Gorge. The Johnsonville line is getting extensive work done to lower and realign the train track in readiness for the new trains. Much of the track is laid in the traditional manner but the tunnels require a pre-fabricated approach. The sections of track are made up in the workshop and delivered to the site on long truck and trailer units.

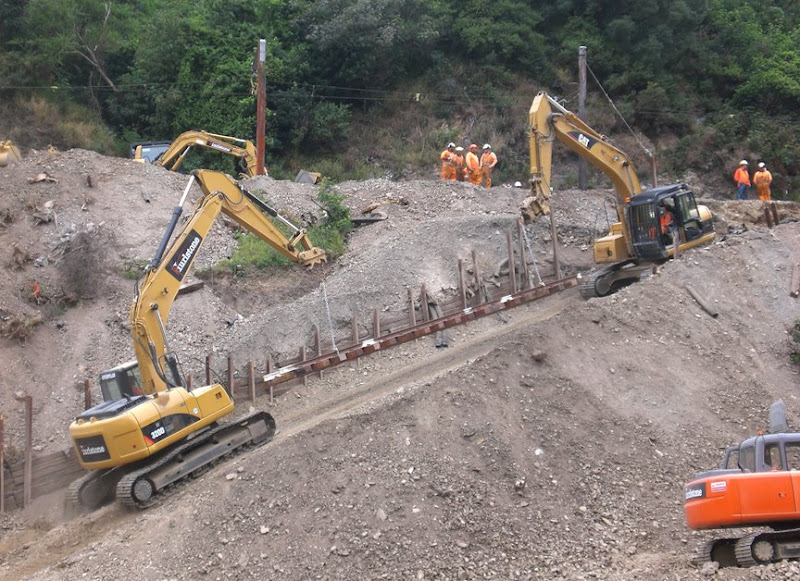

Cranes then transfer the track sections to these two excavators which then carry the track up the hillside to the train track above (where the workman in orange overalls are standing). the track sections are placed on low rolling stock and pushed into the tunnel where they are manouvered into their final place. The track floor has been lowered about 800mm, new drains and cable ducting installed, and the new track sections layed. About 4km of rail has been lifted and 6300 cubic metres of earth shifted in and around the tunnels so far.
